How to strengthen a cell phone signal in a country house or cottage

Date:

2019-02-19 16:30:17

Views:

2730

Rating:

1Like 0Dislike

Share:

How to strengthen a cell phone signal in a country house or cottage Source:

In modern life is hard to imagine myself without any of the advantages of mobile communication and wireless Internet, especially outside the city. To lose the ability to communicate is not desirable, sometimes you got to work (and play, of course). But when I try to explore this issue in the Internet, we are faced with a large number of different proposals. In this article we will attempt to briefly investigate and understand how to secure communication even in remote places.

Enhancing cellular communication is of two types:

    the
  1. 3G/4G router, which catches the antenna signal and distributes inside the room Wi-Fi
  2. the
  3. using the repeater — he directly into the room amplifies GSM signals, 3G, 4G.
the

Gain 3G/4G Internet signal

This option is suitable for those who have a lot of Internet users, or a signal from the base station is so bad that even on the street in front of the house no way of getting 3G/4G signal.

Before moving on to other options for strengthening, it is important to note that if you find it hard to make the measurements and adjustment of the equipment, to help solve the problem of companies that are professionally engaged in — for example, MobileBooster.

the

connection options: antenna + 4G modem + router

Consider the amplification circuit of the mobile Internet from an antenna, modem and router:

The Scheme works is very simple, let's describe it step by step:

    the
  1. 3G/4G signal from the base station of the cellular operator is captured by the antenna, which is located on the facade or the roof of the house;
  2. The Signal is transmitted by cable to the modem, which is inserted in the router; the

  3. the Router distributes the Internet via LAN cable and Wi-Fi N, the number of subscribers.
the

Antenna with built-in router

The Inside of the case antenna is embedded 4G modem, sometimes together with a router. The purpose of these solutions is to avoid losses in coaxial cable increase the cable length from the antenna to the point of connection and simplify installation cable because it is more flexible.

The flip side of this coin — all modems and routers on the passport is designed to work in temperatures from 0 to 40 degrees Celsius. Because such solutions do not live more than two years, and a considerable number of cases «die» in the first winter. Also in recent time, the market began to appear reliable solutions with integrated 4G routers. For example, is quite expensive Zyxel LTE7460-M608 or model RF-Link and RF R832-Link R850.

By the Way! A few words about the solution that is presented in the picture below. He's almost there. If you your modem or router will deliver on the windowsill on the second floor, where the signal level is usually better, the result is clearly no worse, and in some cases even better.

the

selecting a mobile operator for 3G/4G Internet

To select a cellular carrier is a convenient service — : Beeline, MegaFon, MTS, Yota, Tele2, Skylink. You will be able to easily identify the presence of a 3G/4G network in the right place. The information is current and updated automatically.

the

Gain GSM/3G/4G with a repeater

This option of strengthening is necessary for those who have problems with Internet and voice communication, that is, we have to run to the second floor or the street to make a regular phone call.

A Repeater is an intermediate between the external antenna directed at base station of cellular operators, and internal antennas that emit a signal to user devices such as smartphone, tablet, modem, router and others.

the

Amps to give

By the amps to give no special requirements. This is usually a one - or two-band repeaters on low power. It is recommended to select with the help of a program that will show the frequency of the frequency range in your area. The frequency is acute, since mobile operators are working in all 5 frequency bands, and to buy the amplifier 5 frequency — quite expensive and unprofitable pleasure.

Because you have to spend 5-10 minutes of your life and to use the program — for example, it is possible to download the program . Immediately when you start in the upper left corner you can see the frequency in MHz.

If you have a family use SIM cards from different operators will probably need a dual-band repeater. For example, the repeater with frequency 1800 + 2100 MHz can enhance the three communication standard – GSM, 3G, 4G.

the

Amplifiers for houses

The Main problem — time to lay cable route under construction to the final finishing, and in 95% of cases this is not no advance worries. You have to install the amplification system of mobile communication is already finished, the doors and into the vents to run cables and place a hidden antenna.

When calculating the coverage area internal antennas coverage area is laid on the order of 100-150 sq. m., provided that, in the next room there is a doorway. Reinforced concrete practically does not break the signal, so each floor should be displayed at least one internal antenna.

According to statistics, when a fine finish is most often the cable from the external antenna down to the boiler room where the repeater. And then an internal antenna equipped inside the boiler or put on the wall beyond it, to expand the coverage area, as the walls absorb much of the signal power. Thus, it is necessary to use amplifiers of high power, so as to maximize the coverage inside the building.

Also a popular option for installing the main equipment — in the attic. The cable to the inside antenna is laid on the facade — such as gutters or for ventilation. An example of suchsolutions:

There Are cases when it is possible to use a coaxial cable television network to connect the internal antennas in the rooms where it is necessary to strengthen cellular communication. Although television cables another wave impedance, in practice this still gives a positive result.

the

fixed problem installing

When you install repeaters one of the highlights is the spatial separation of the external and internal antennas to avoid the "loopback" signal, in which the system will cease to function. Further, the diagram will show the correct and wrong installation:

Incorrectly

Right

the

total

To strengthen Internet signal through a router special skills are not necessary — simple enough. In most cases any measurements of the frequencies do not need enough to know that somewhere nearby on the street, there is a weak 3G/4G signal, or to see its availability for the coverage map. Another strong recommendation — to hang the antenna as high as possible – this greatly affects the speed of the Internet.

To strengthen the voice and the Internet using repeater in the country, it is necessary to make measurements of frequencies. Nothing complicated, but a little time will have. Otherwise you risk to get a negative effect. Listen to sellers online stores is not: it is still that guesses. The installation of the repeaters in the cottage is recommended to trust the professionals, or at least ask them to help with the selection of equipment.

Recommended

How to watch YouTube on my TV? Example TV set-top box on Android

How to watch YouTube on my TV? Example TV set-top box on Android

Interesting design draws all gadgets In recent years, increasingly heard the words “I don't watch TV”. Some add that they don't even have. But on the TV hanging on the wall or standing do not stand, you can watch not only Federal channels. Especially...

Comments (0)

This article has no comment, be the first!

Add comment

Related News

USA looking for a company that will burn tons of sensitive data

USA looking for a company that will burn tons of sensitive data

Huge volumes of data that are stored on military bases, not just drag to trash and delete. All equipment that store confidential information, subject to complete destruction. Best of all this handle the fire, so missile range Whit...

#CES | AMD introduced its new flagship graphics card and processors Ryzen 3rd generation

#CES | AMD introduced its new flagship graphics card and processors Ryzen 3rd generation

AMD has presented at CES-2019 two new items, which was expected by many. First, the company announced the world's first graphics card that runs on the GPU, built using a 7-nm process. And secondly, AMD introduced its 3rd generatio...

#CES | told and showed Nvidia for the presentation

#CES | told and showed Nvidia for the presentation

Before the International exhibition of electronics CES, some companies traditionally hold a media event, entirely dedicated to their new products. In the framework of the CES-2019 the first among such companies was Nvidia who made...

TOP 7 cheap gifts for New year for a PC user

TOP 7 cheap gifts for New year for a PC user

so, Dec. Have already prepared gifts for the New Year? As yet there? Then read the selection of ideas for gift for new year celebration! Today we have some interesting proposals that could be useful in light of the rapidly approac...

This external battery will charge a smartphone 5 times. And not one

This external battery will charge a smartphone 5 times. And not one

Although modern smartphones in size much more than their predecessors, manufacturers still can't place the device battery that would not charge the phone every day or two, because the more capacitance, the less it becomes an ergon...

Than Apple will equip the iPhone in a few years

Than Apple will equip the iPhone in a few years

the Era of 5G will begin in 2019. For it prepare not only the vendors of mobile devices, but those companies that produce components for them. Among them — and Intel. iPhone, which from year to year glad Apple are extremely...

How to choose cheap cable for smartphone and tablet?

How to choose cheap cable for smartphone and tablet?

Who among us has not encountered problems with USB cables, so fast tired from the operation of that bending the ends turn into rags with wires sticking out? And who does not know the painful attempts to charge the phone with the r...

The new chip even more closer to the creation of optical quantum computer

The new chip even more closer to the creation of optical quantum computer

according to the editorial Board Phys.org, an international group of researchers has taken a big step toward creating an optical quantum computer, with its enormous research potential in various fields: from the creation of new dr...

Warm greetings flagships: ASUS ZenFone 5

Warm greetings flagships: ASUS ZenFone 5

Many smartphones in the medium price segment are noteworthy, but often, underneath it all, ordinary employees, who can easily calculate — from materials and processor to a stable firmware. However, there are decent machines ...

5 great new features Snapdragon 855

5 great new features Snapdragon 855

Snapdragon 855 — the new top-end mobile platform — was one of the most important technology announcements of the beginning of December this year and is already . After all, this chipset will find application in many o...

Qualcomm introduced its first processor for laptops

Qualcomm introduced its first processor for laptops

it was the third day of the summit, Qualcomm, under which the company made a surprise announcement and presented the world's first processor made for 7-nm process technology, for personal computers. Chipset Snapdragon 8cx differs ...

Qualcomm has introduced the most powerful processor for laptops

Qualcomm has introduced the most powerful processor for laptops

it was the third day of the summit, Qualcomm, under which the company made a surprise announcement and presented the world's first processor made for 7-nm process technology, for personal computers. Chipset Snapdragon 8cx differs ...

Qualcomm introduced the Snapdragon 855 — chip for flagship 2019

Qualcomm introduced the Snapdragon 855 — chip for flagship 2019

In the second day of the summit, the manufacturer has officially announced the release of a mobile platform Snapdragon 855. Chip was the most efficient in the market for flagship devices. The platform has got OCTA core processor w...

The memorable first day of the summit Qualcomm

The memorable first day of the summit Qualcomm

kicked off the third annual Qualcomm Tech Summit, where the company should announce not only a new Snapdragon processor 855, but also to announce the main news and changes. The first day of the conference came to an end, and the e...

NVIDIA introduced the flagship Titan graphics card RTX

NVIDIA introduced the flagship Titan graphics card RTX

the Company officially its most powerful consumer graphics card — Titan RTX. The announcement followed a few days later after the Network began to appear supposedly "accidentally exposed" to some Western bloggers ' image of ...

Snapdragon 8150 characteristics. One huge advantage over Snapdragon 845

Snapdragon 8150 characteristics. One huge advantage over Snapdragon 845

Soon, at the beginning of December 2018, the public will be acquainted with the basis of the hardware the most impressive smartphones the following production season. It is believed that the new chip called Snapdragon 8150. In th...

IBM explores copper magnetism for the development of

IBM explores copper magnetism for the development of "atomic memory modules"

Every innovation in any field starts with basic research that lays the Foundation for future inventions. Now it becomes clear that the media in its present form will cease to exist, as happened once with floppy disks and punch car...

Intel is challenging AMD for their new 48-core processor

Intel is challenging AMD for their new 48-core processor

Opposition to such "iron" giants like Intel and AMD will not end, probably, never. The company regularly updates its line of professors, adding new features, improving workflow and making their products more powerful and interesti...

First launched the most powerful supercomputer simulating the human brain

First launched the most powerful supercomputer simulating the human brain

Today, supercomputers are used for a wide range of tasks from various mathematical calculations and manipulation of data sets to simulation of pharmaceutical compounds and artificial intelligence. However, there are computers aime...

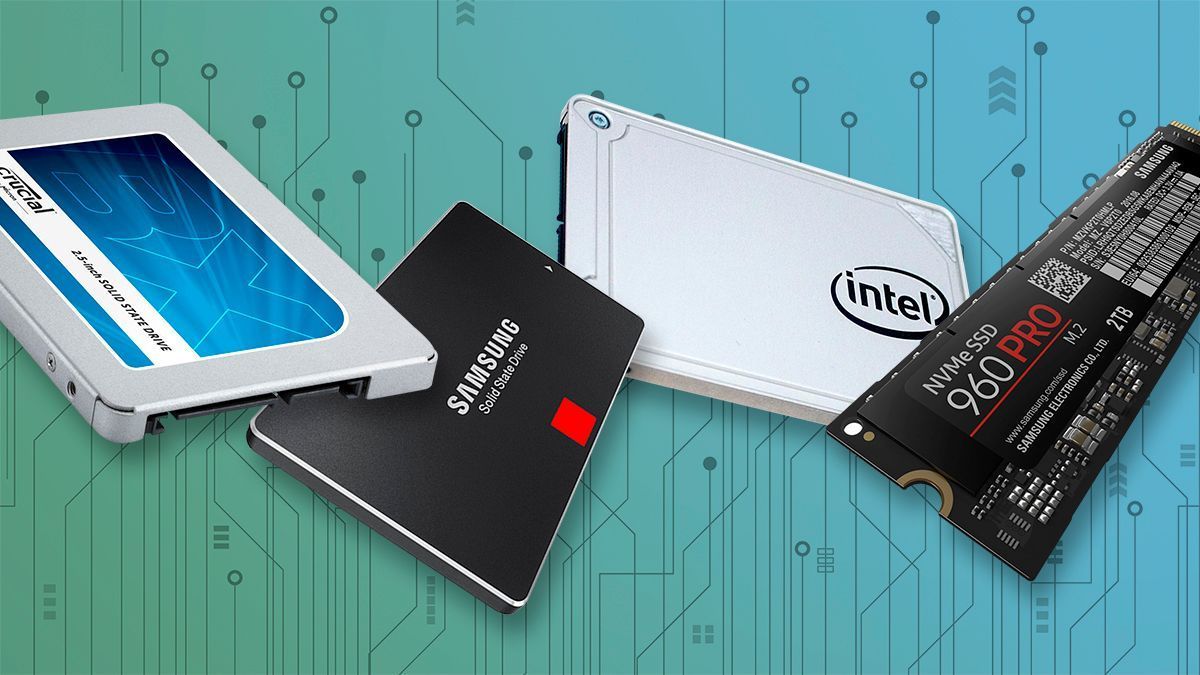

Memory of the future: how does a SSD?
